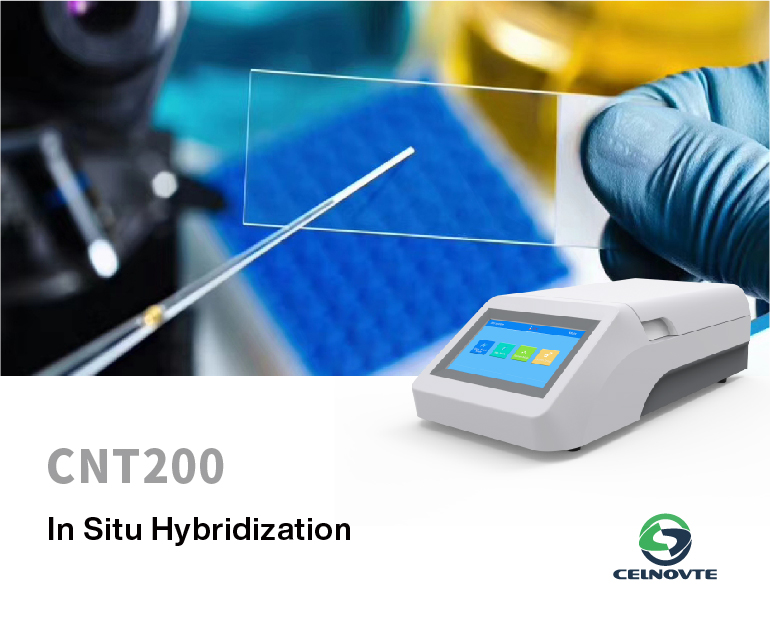

CNT200 In Situ Hybridization
The CNT200 In Situ Hybridization System harnesses the powerful principle of nucleic acid hybridization, developed from DNA replication research. In situ hybridization enables researchers to visualize, localize, and semi-quantitatively analyze nucleic acid sequences directly within tissue sections or cells. By using labeled DNA or RNA probes that hybridize to complementary sequences within samples, ISH provides a direct, simple, and reliable method to study gene localization and expression. This technique offers high sensitivity and specificity, making it essential for modern research in cell biology, molecular biology, and pathology.
Product Feature
Flexible
Three operating modes are available: Denaturation and Hybridization, Hybridization, and Multipoint. The system supports a wide range of ISH, FISH, and CISH workflows.
Customizable
Up to 120 user-defined programs allow protocols to be tailored to different probes, samples, and experimental requirements.
Precise
Temperature control from 35 to 99 °C provides stable conditions for denaturation and hybridization, with real-time status display.
Reliable
Microprocessor-controlled automation standardizes denaturation and hybridization steps, helping improve reproducibility and reduce manual error.
Optimized Humidity Control
The fully sealed upper cover and automatic humidification help maintain a stable reaction environment throughout the process.
Efficient Capacity
Processes up to 12 slides simultaneously for routine laboratory workflows and research applications.

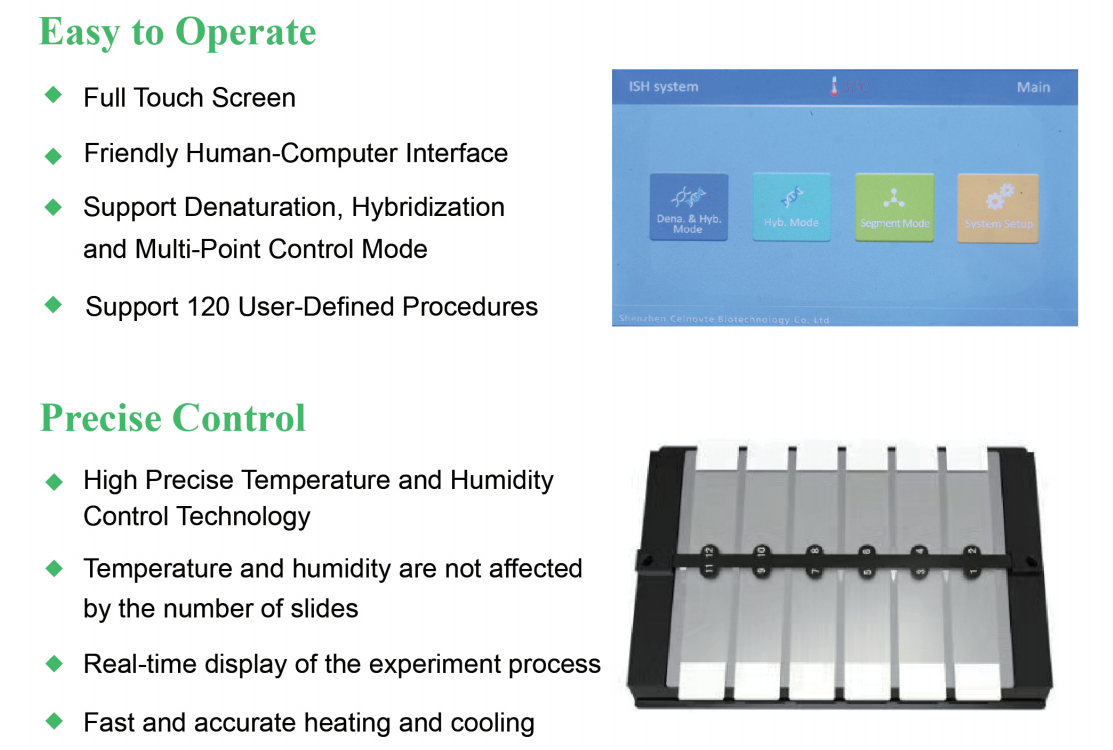

Intuitive
The user-friendly touchscreen simplifies program setup, monitoring, and daily operation.
Versatile Applications
Suitable for gene mapping, pathogen detection, oncogene and tumor suppressor analysis, and chromosome studies including aneuploidy and translocation detection.
Specification
| Specification | Description |
| Temp Control | Room +5°C ~ 99°C |
| Temp Setting Range | 35°C ~ 99°C |
| Processing Time Range | 1 min ~ 99 h 59 min |
| Temp Control Accuracy | < ±1°C |
| Temp Uniformity | ±1°C |
| Heating Time | < 2 min |
| Cooling Time | < 6 min |
| Maximum Sample | 12 pieces |
| Dimensions (L x W x H) | 480 x 245 x 145 mm |
| Weight | 7 kg |
| Ambient Temp | 5°C ~ 35°C |
| Ambient Humidity | 20% ~ 80% |
| Power | AC220V/50Hz or AC110V/60Hz |
