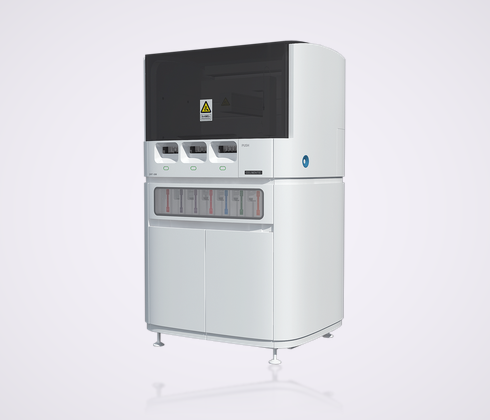

CNT330 Full Automatic Multiplex IHC Stainer
Optimize your IHC lab workflow with the CNT330 Full Automatic Multiplex IHC Stainer. This advanced system supports continuous operation, loading up to 30 slides across three independent frames simultaneously. Enjoy a fully automated process, including slice drying, deparaffination, antigen retrieval, and more, enhancing lab standardization and efficiency. Standalone modal.
Overview Video
CNT330 Fully Automatic Stainer Overview Video
Discover the advanced capabilities of the CNT330 Stainer in this overview video. Learn about its performance, reliability, and how it can streamline your workflow.
Product Feature
Full-automatic

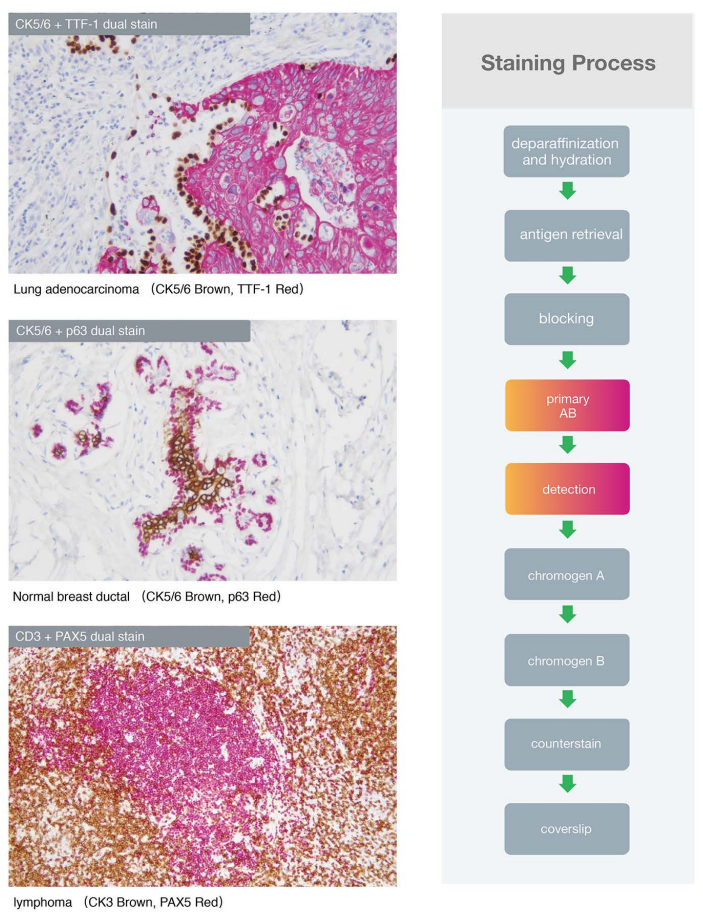

Baking, deparaffinization, antigen retrieval, blocking, detection, and counterstain for IHC, Multiplex IHC, and ISH applications.
Reliable
Real-time monitoring and tracking; identify labels by both camera and infrared to avoid human error.
Multifunctional
Supports IHC, ISH, Multiplex IHC, IF and ICC protocols.
Economical
Dispense volume can be reduced to 100 µL to save on reagent usage and reduce costs
High Resolution
The innovative MicroStacker polymer technology ensures sensitive and specific detection.
Intuitive
User-friendly interface with visual cues on reagent volume and program status.
Flexible
Ability to continuously load and unload slides during runs. Supports multiple devices managed by a central computer. Customizable protocols and LIS integration.
Eco-Friendly
Separate waste containers for hazardous (DAB) and non-hazardous waste, helping labs reduce disposal costs and environmental impact.
Specification
| General Characteristics | Description |
| Intuitive software interface | Visual monitoring of reagent volume, running time, and fault messages. |
| Waste Separation | Non-toxic deparaffinization solution. Separate containers for hazardous (DAB) and non-hazardous waste. |

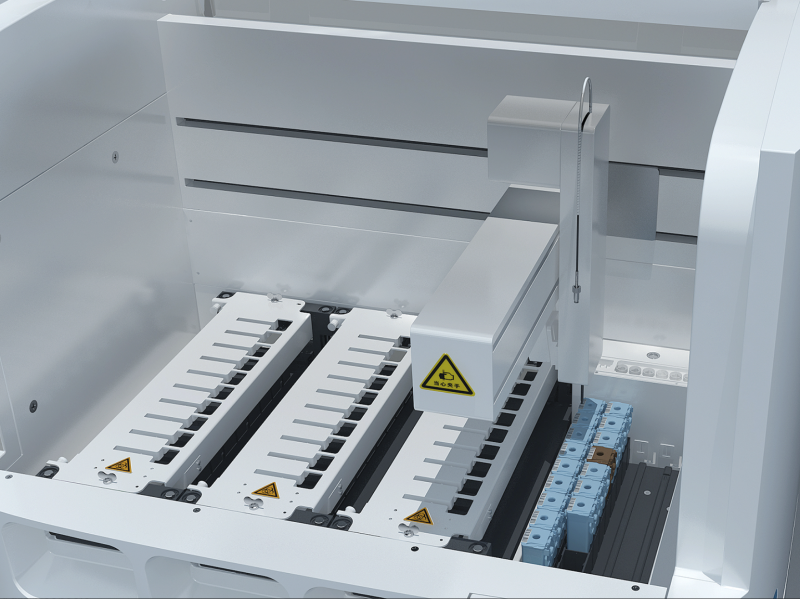

| Slide Capacity | 3 trays, 30 slides, 10 slides per tray. |
| Turnaround Time | ≤3.5 hours |
| Multifunctional | Supports IHC, ISH, Multiplex IHC, ICC protocols. |
| Temperature control | 30 individual heating units, slides can be heated up to 100ºC for antigen retrieval. |
| Dispense volume | 100 µL, 120 µL, or 150 µL |
| Reagent container capacity | 5 mL, 10 mL, 25 mL, and 40 mL |
| Number of reagent container spots | 36 |
| Bulk liquid container | 2.5L |
| Waste containers | 15 L |
| Fluid probe | PTFE coated titanium alloy |
| Environmental Requirements | Description |
| Operating temperature | 5°C ~ 35°C (41°F ~ 95°F) |
| Maximum heating energy | 1500 VA |
| Dimensions (L x W x H) | 960 mm x 780 mm x 1600 mm |
| Weight | 250 kg |
| Electrical Parameters | Description |
| Voltage and Mains frequency | AC 110V/60Hz or AC 220V/50Hz |
| Power consumption | 1200 VA |
