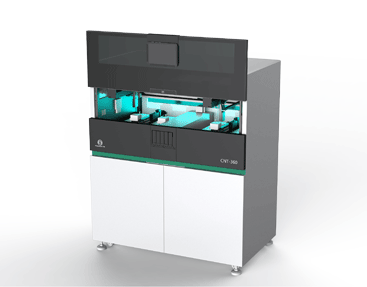

CNT360 Full Automatic IHC&ISH Stainer
Discover seamless efficiency in your IHC & ISH workflow with the CNT 360 full-automatic IHC & ISH stainer. This all-in-one powerhouse excels at executing multiple immuno-staining protocols on a single platform, providing unparalleled fast turnaround time and high-throughput capabilities. Elevate your laboratory's productivity with our ready-to-use reagent kits and protocols, meticulously crafted to guarantee optimal staining results. Trust CNT 360 as your one-stop solution for a comprehensive and streamlined IHC & ISH workflow, ensuring precision, speed, and top-tier staining quality.
Overview Video
CNT360 Full Automatic IHC&ISH Stainer Overview Video
Product Feature

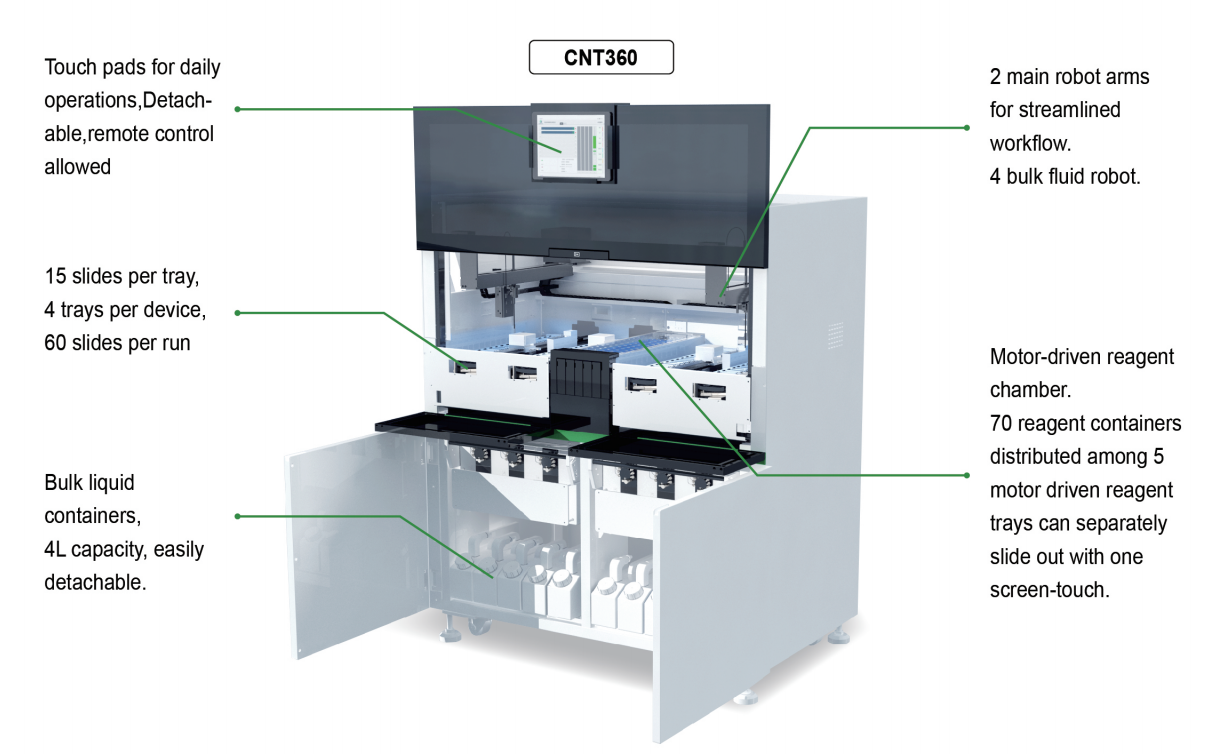

High-throughput
M1: 60 slides per run | M2: 120 slides per run
Fast Turnaround Time
2.5hrs turnaround time, powered by robotic arms and bulk liquid trains.
Intuitive Operation
Detachable touch-pads with remote control capability. Customizable protocols and LIS integration.
Temperature Control
Constant temperature control for both slide chamber and reagent chamber.
Flexibility in Slides and Reagent Placement
Allows loading and unloading of reagent and slides during protocol runs. Supports multiple protocols to run simultaneously.
Multifunctional
Supports IHC, ISH, Multiplex IHC, IF and ICC protocols.
Specification
| General Characteristics | Description |
| Full-automatic | Baking, deparaffinization, antigen retrieval, blocking, detection, counterstain - for IHC, Multiplex IHC, and ISH applications. |
| Intuitive software interface | Visual monitoring of reagent volume, running time, and fault messages. |
| Waste Separation | Non-toxic deparaffinization solution. Separate containers for hazardous (DAB) and non-hazardous waste. |
| Slide Capacity | M1: 4 trays, 60 slides; M2: 4 main robot arms, 8 bulk liquid trains |
| Turnaround Time | 2.5 hours |
| Robot design | M1: 2 main robot arms, 4 bulk liquid trains; M2: 4 main robot arms, 8 bulk liquid trains |
| Temperature control | Reagent chamber: 14–18°C; Slide chamber: 25–30°C for incubation (slides can be heated up to 100°C for antigen retrieval) |
| Dispense volume | 100 µL, 120 µL, or 150 µL |
| Reagent container capacity | 5 mL, 10 mL, 25 mL, and 40 mL |
| Number of reagent container spots | M1: 70 spots; M2: 140 spots |
| Bulk liquid container | 4L × 6 |
| Waste containers | Non-hazardous: 4L × 3; Hazardous: 4L × 1 |
| Fluid probe | Stainless steel |
| Environmental Requirements | Description |
| Operating temperature | 5°C ~ 35°C (41°F ~ 95°F) |
| Maximum heating energy output | 2800 VA |
| Dimensions (L x W x H) | 1370 mm x 820 mm x 1600 mm |
| Weight | M1: 400 kg; M2: 800 kg |
| Electrical Parameters | Description |
| Voltage and Mains frequency | AC 110V/60Hz or AC 220V/50Hz |
| Power consumption | 2800 VA |
