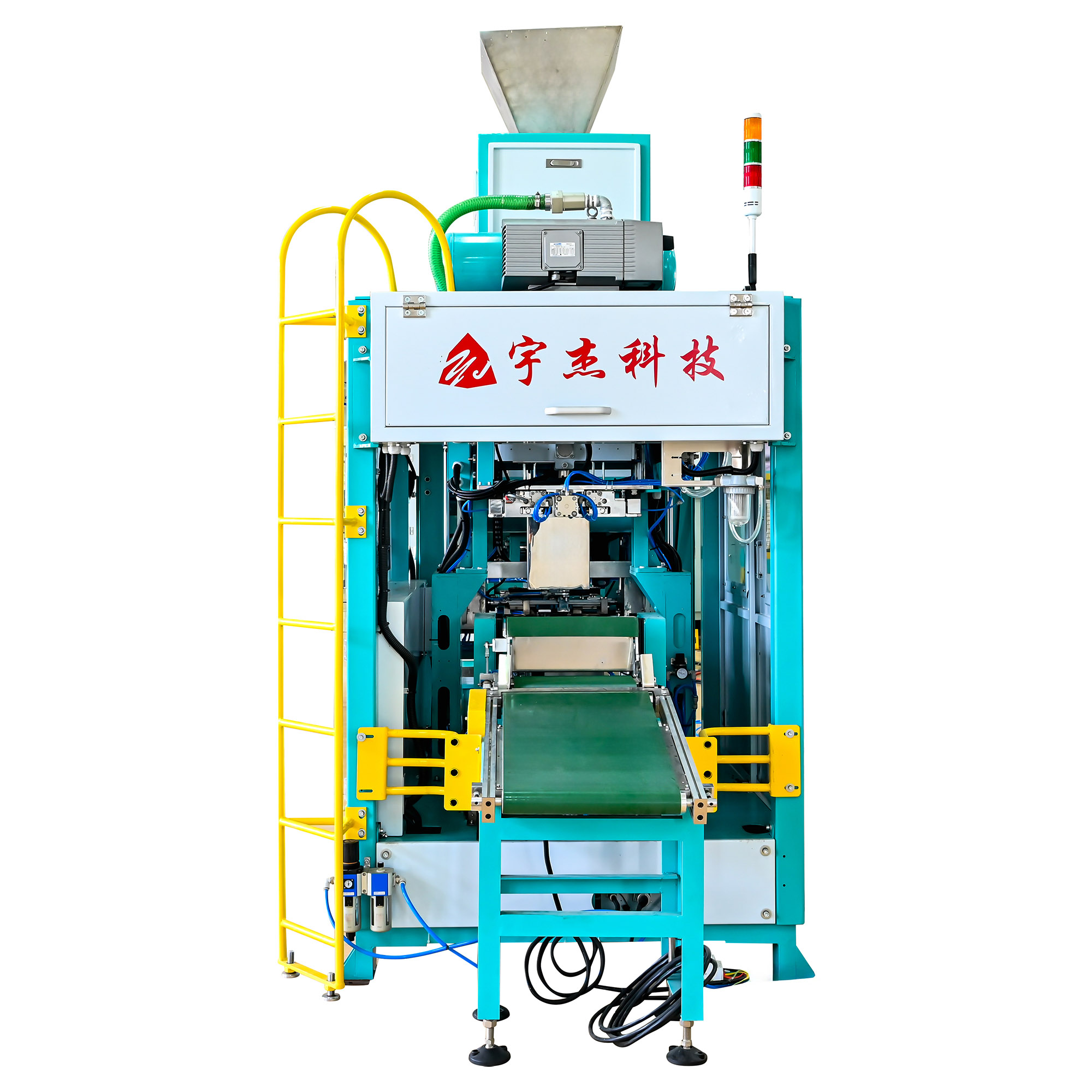

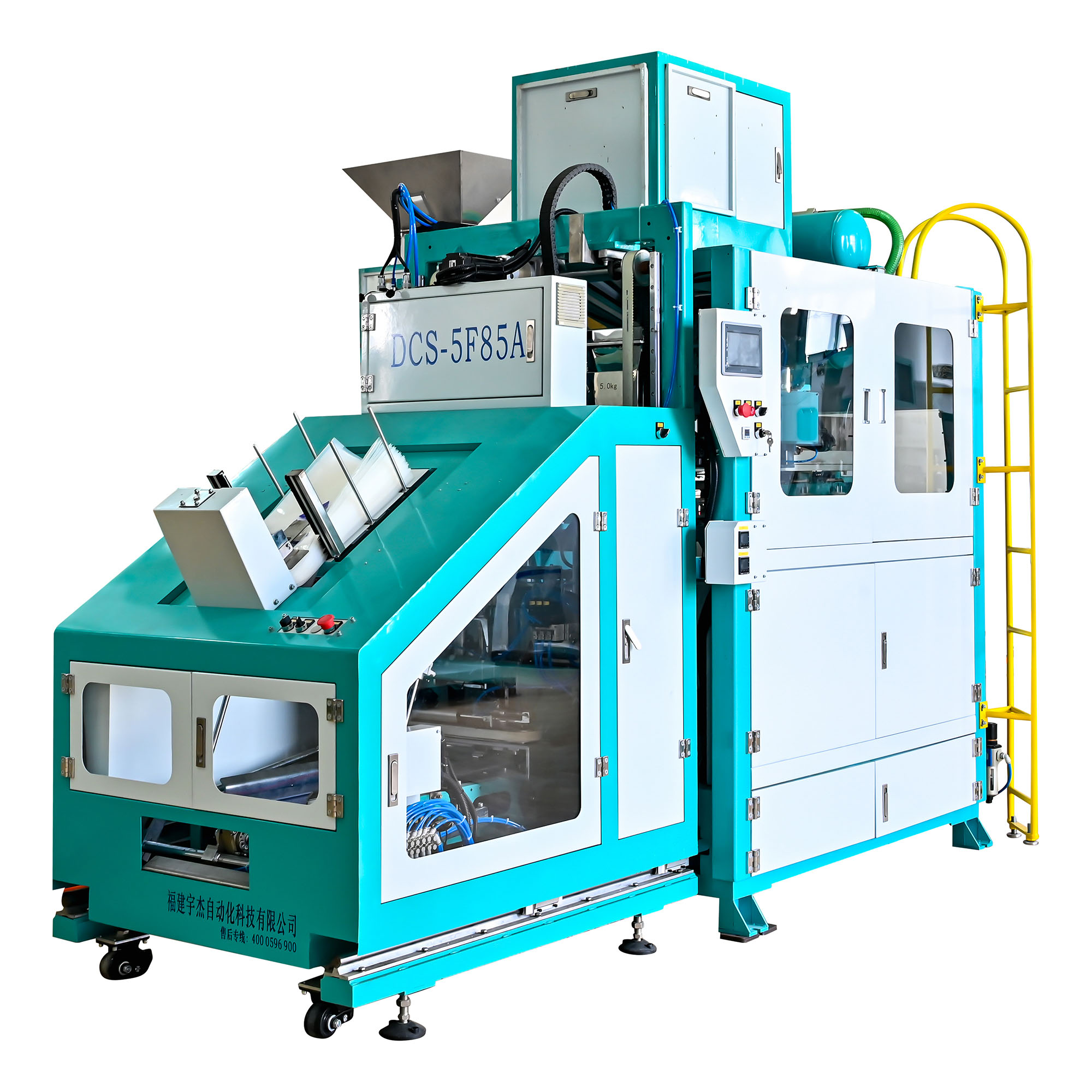

EnglishDCS-5F85A | Fully Automatic Brick-shaped Vacuum Packaging Machine
Achieve high-speed, stable, and aesthetically perfect vacuum packaging with our fully automatic six-side (brick-type) machine.

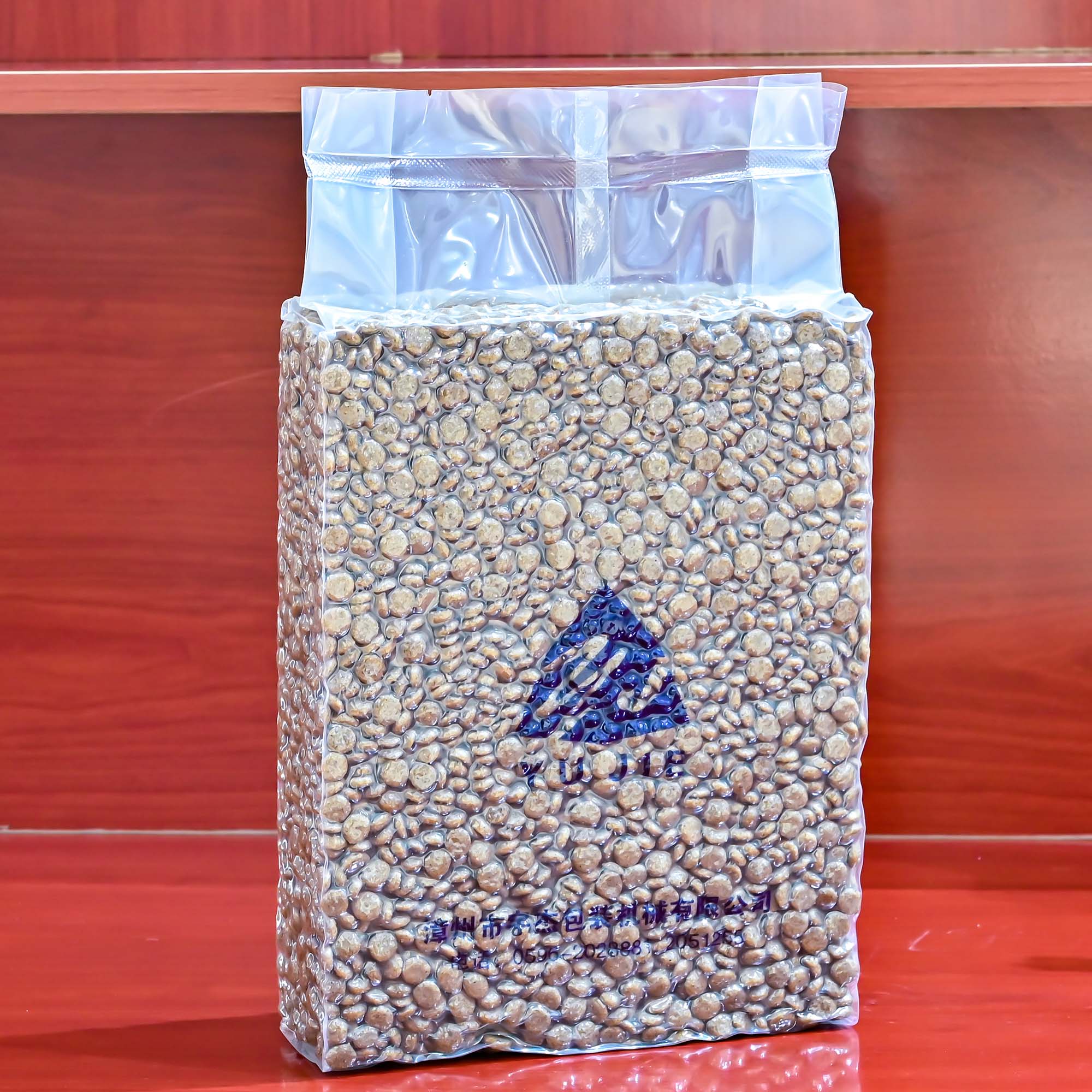

Packaging Finished Product Display
Nut six sided packaging
Melon seed six sided packaging
Peanut six sided packaging
Finished rice brick vacuum packing
Features
01
Fully automatic

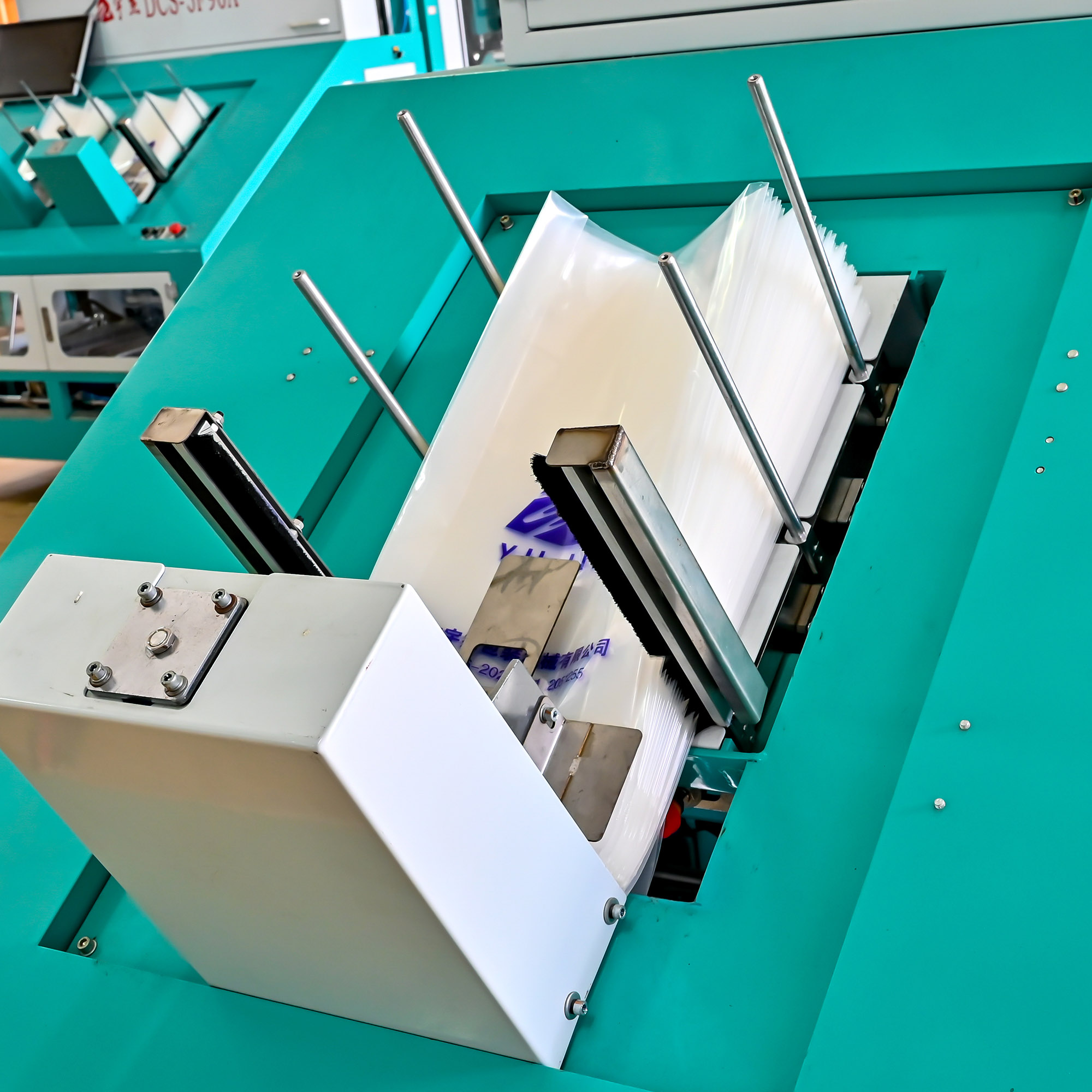

Automatic bagging, bagging, metering, filling, vacuum (shaping), finished product packaging output, realizing unmanned packaging process
02
Large packaging range
A shaping mechanism with a wide capacity of 300G~5KG, suitable for packaging in thick and thin shapes
03
Parameter‑Click Switch
The device can save parameter groups, switch specifications with one click, and automatically adjust the device
04
Dual‑Servo Four‑Stations
Efficient packaging with four workstations, powered by servo motors for precise and stable operation
05
Tri‑Stage Precision Scale
The scale body adopts a three-level feeding mode, with fast speed and high accuracy
Technical Specifications
DCS-5F85A | Fully Automatic Brick-shaped Vacuum Packaging Machine
宽80-235 长度130-335 厚度 30-80
Specification | Parameter |
| Packing range | 0.3~5kg |
| Packing speed | 500-600 packages/hour |
| Packaging error | 2~5g |
| Finished Brick-pack size range | Width: 80-125 Length: 130-335 Height: 30-80 |
| Power consumption | AC380V 50HZ 3.5kw |
| Air source requirements | 0.6mpa 6m3/h |

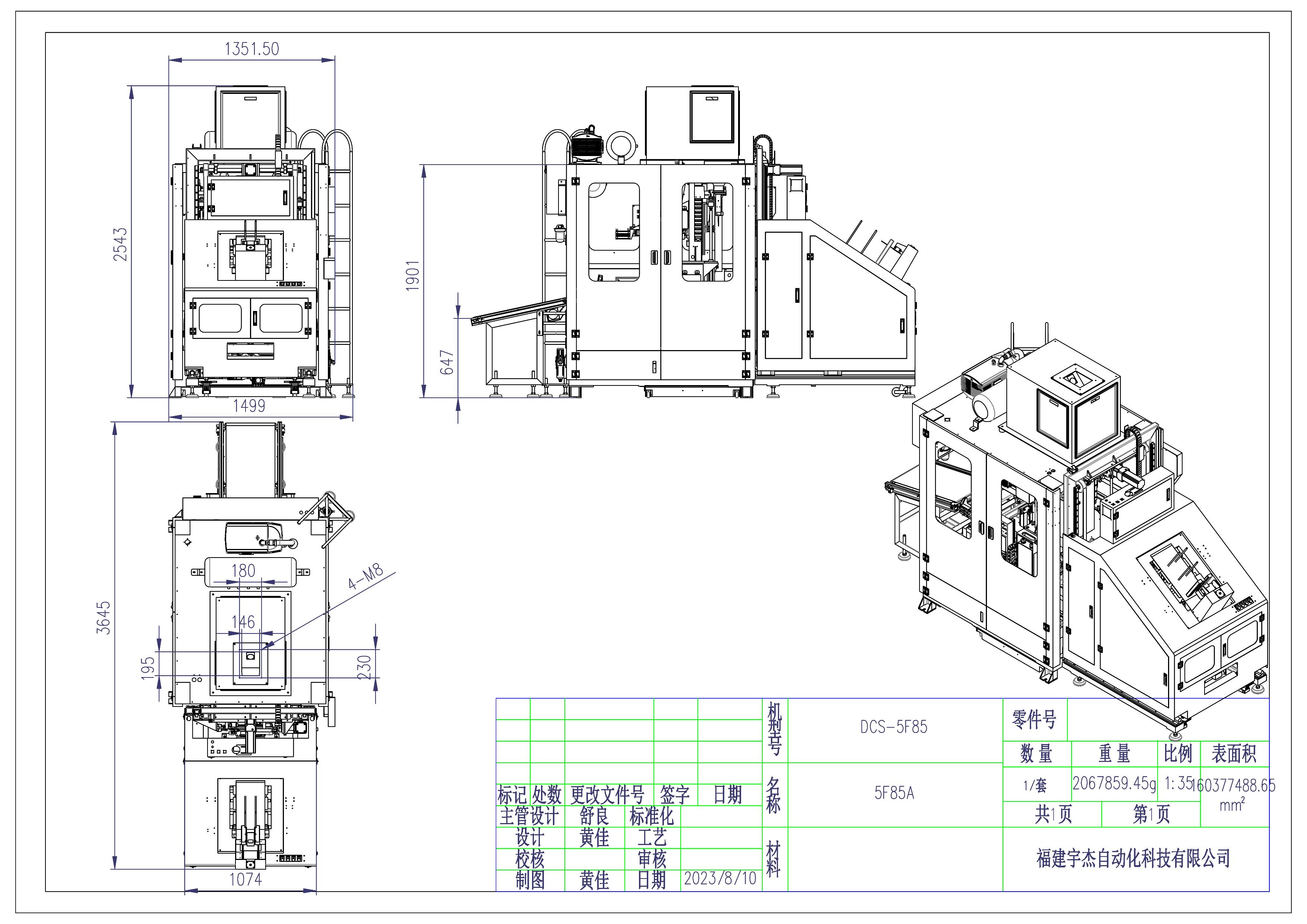

| Dimensions | length 1500* width 3650* height 2545 (mm) |
| Vacuum degree (MPa) | -0.07-0 (adjustable) |
| No. | Component Name | Brand/Manufacturer |
|---|---|---|
| 1 | PLC (Programmable Logic Controller) | Siemens (Germany) |
| 2 | Expansion Module | Siemens (Germany) |
| 3 | HMI Touch Panel | Beijer (Sweden) |
| 4 | Servo Drive | Delta (Taiwan) |
| 5 | Electric Cylinder | Inovance (China) |
| 6 | Switching Power Supply | Mean Well (Taiwan) |
| 7 | Terminal Blocks | Phoenix Contact (Germany) |
| 8 | Circuit Breaker/Contactor | Schneider (France) |
| 9 | Push Button Switch | Schneider (France) |
| 10 | Proximity Sensor | Schneider (France) |
| 11 | Pneumatic Components | Airtac (Taiwan) |
| 12 | Weighing Control Module | Germen Tech |
| 13 | Vacuum Pump | Becker (Germany) |
| 14 | Temperature Controller | Omron (Japan) |
| 15 | Electronic Vacuum Gauge | Kingdon (Taiwan) |
Related Application Scenarios
Rich product system that can be applied to various industry scenarios
-
The rice packagingThe rice packaging industry is rapidly transitioning from manual operations to automation and intelligence. Facing multiple needs including moisture prevention, freshness preservation, efficiency improvement, and cost control, intelligent packaging systems have become key to industry upgrading. -
The coarse grain packagingThe coarse grain packaging sector faces challenges including small batch sizes, multiple varieties, and high-frequency production. Yujie's smart packaging system provides tailored solutions with precise weighing, rapid changeover, and high-efficiency packaging. This helps producers maintain freshness while meeting market demand for diverse and convenient packaging formats.
