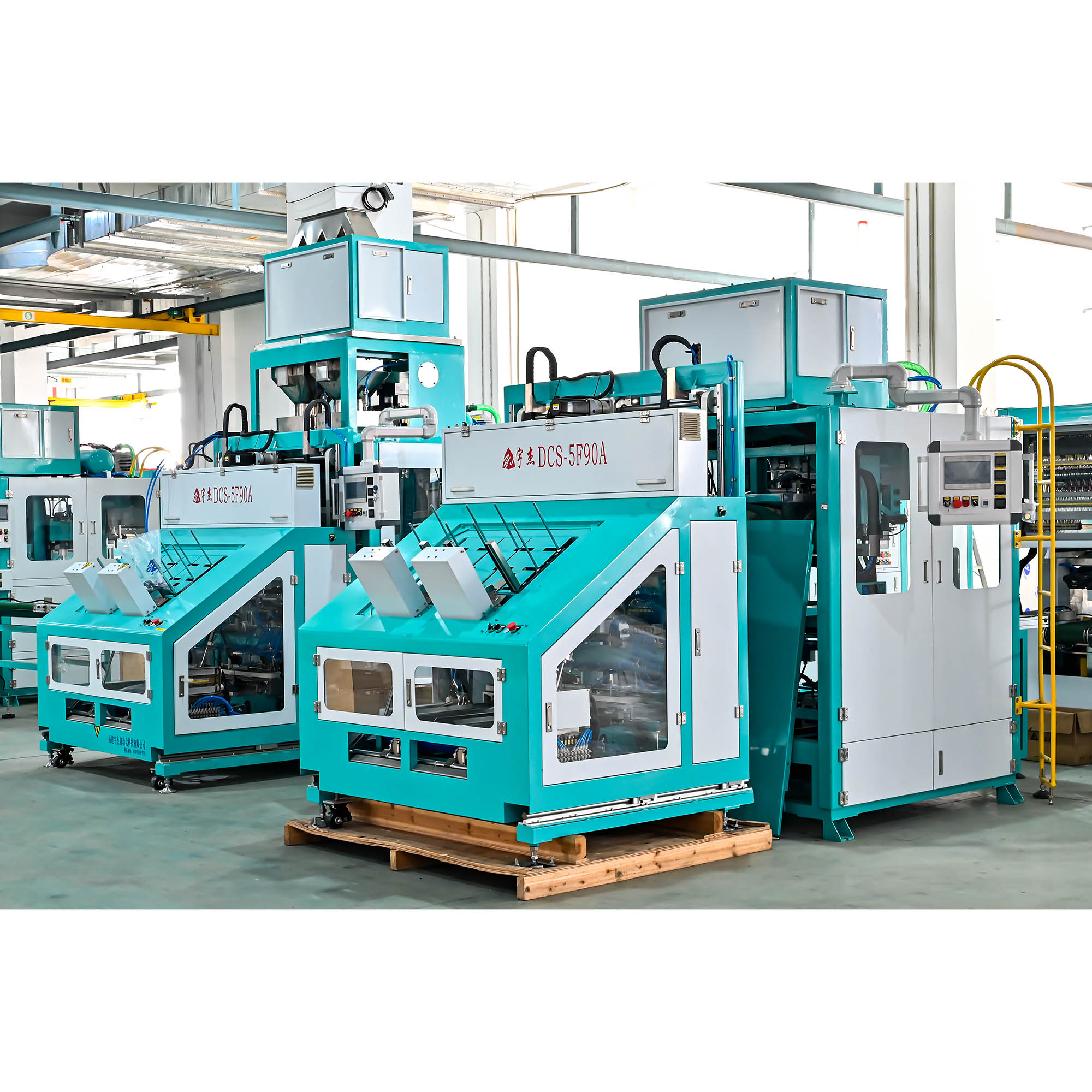

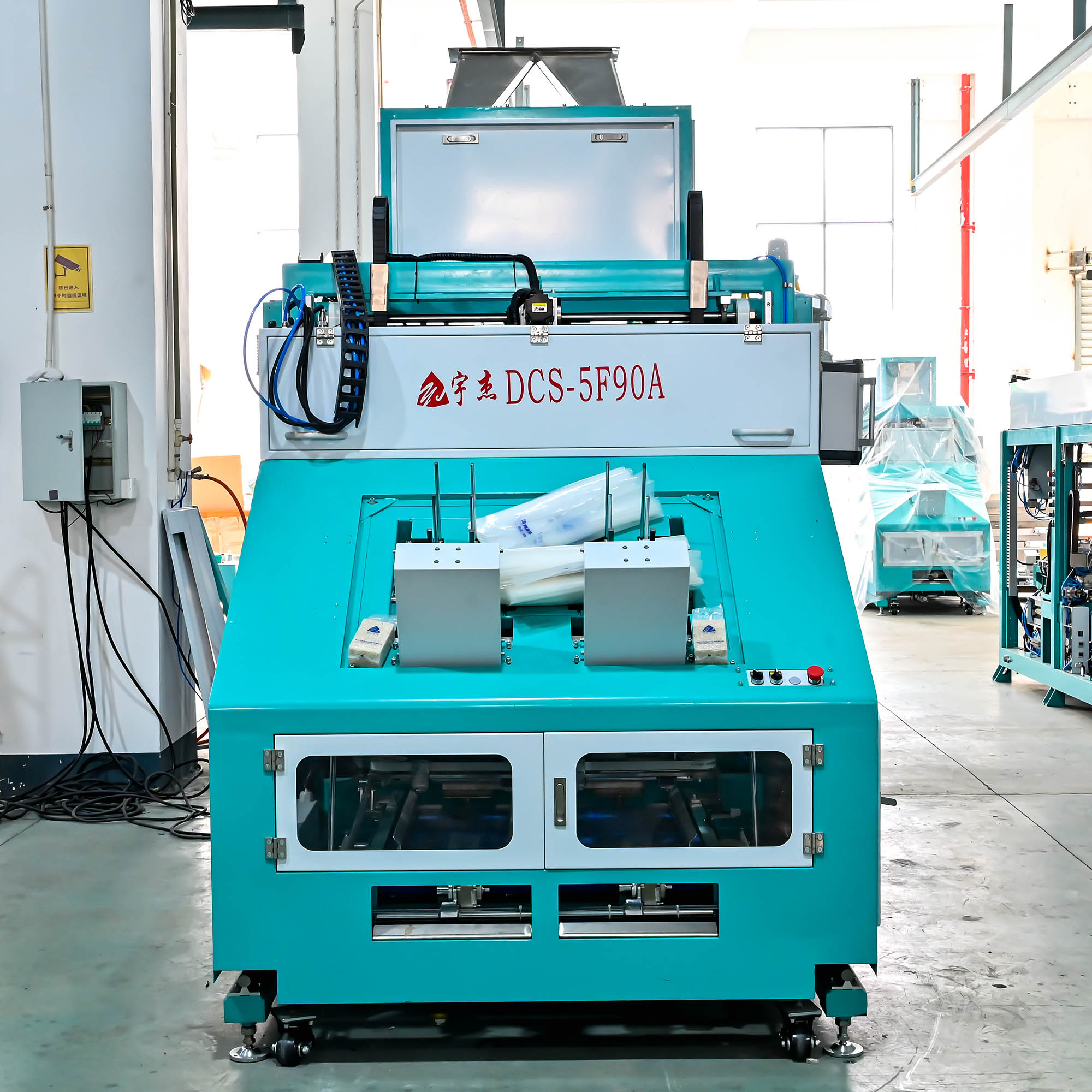

DCS-5F90A | Fully Automatic Brick-shaped Vacuum Packaging Machine

Achieve high-speed, stable, and aesthetically perfect vacuum packaging with our fully automatic six-side (brick-type) machine.

Packaging Finished Product Display

Nut six sided packaging

Six sided packaging of
melon seeds

Melon seed six sided packaging

Peanut six sided packaging

Rice brick-shaped vacuum packaging

Features

Automatic bagging, bagging, metering, filling, vacuum (shaping), finished product packaging output, realizing unmanned packaging process

A shaping mechanism with a wide capacity of 300G~5KG, suitable for packaging in thick and thin shapes

The device can save parameter groups, switch specifications with one click, and automatically adjust the device

Efficient packaging with four workstations, powered by servo motors for precise and stable operation

The scale body adopts a three-level feeding mode, with fast speed and high accuracy

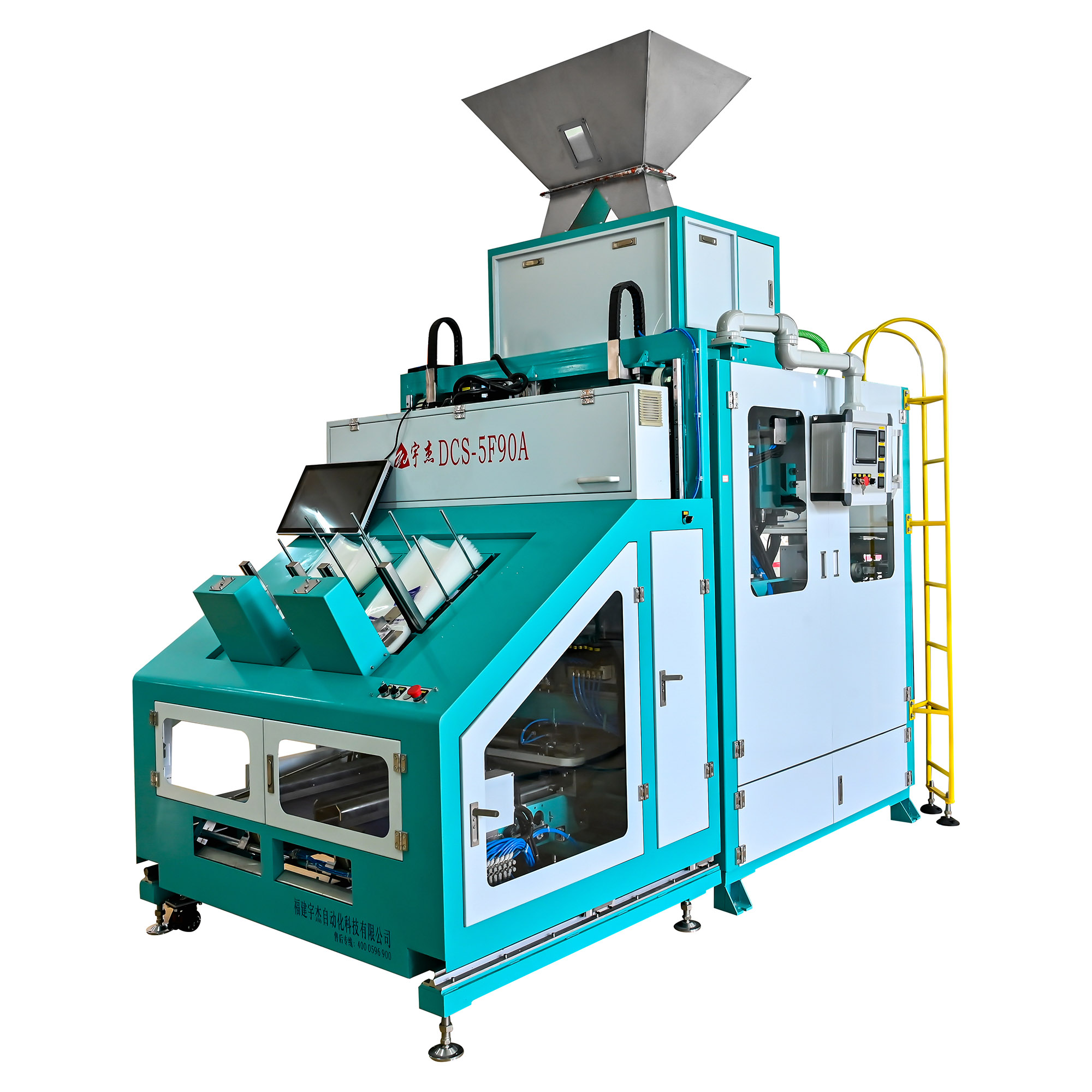

DCS-5F90A | Fully Automatic Six Sided Shaping Vacuum Packaging Machine

Specification	Parameter
Packing range	0.25~5kg
Packing speed	800-1000 packages/h
Packaging error	2~5g
Size range of finished brick pack	Width: 80-235, Length130-335mm, Height 35-80mm
Power consumption	AC380V 50HZ 2.5kw
Air source requirements	0.6mpa 4m3/h

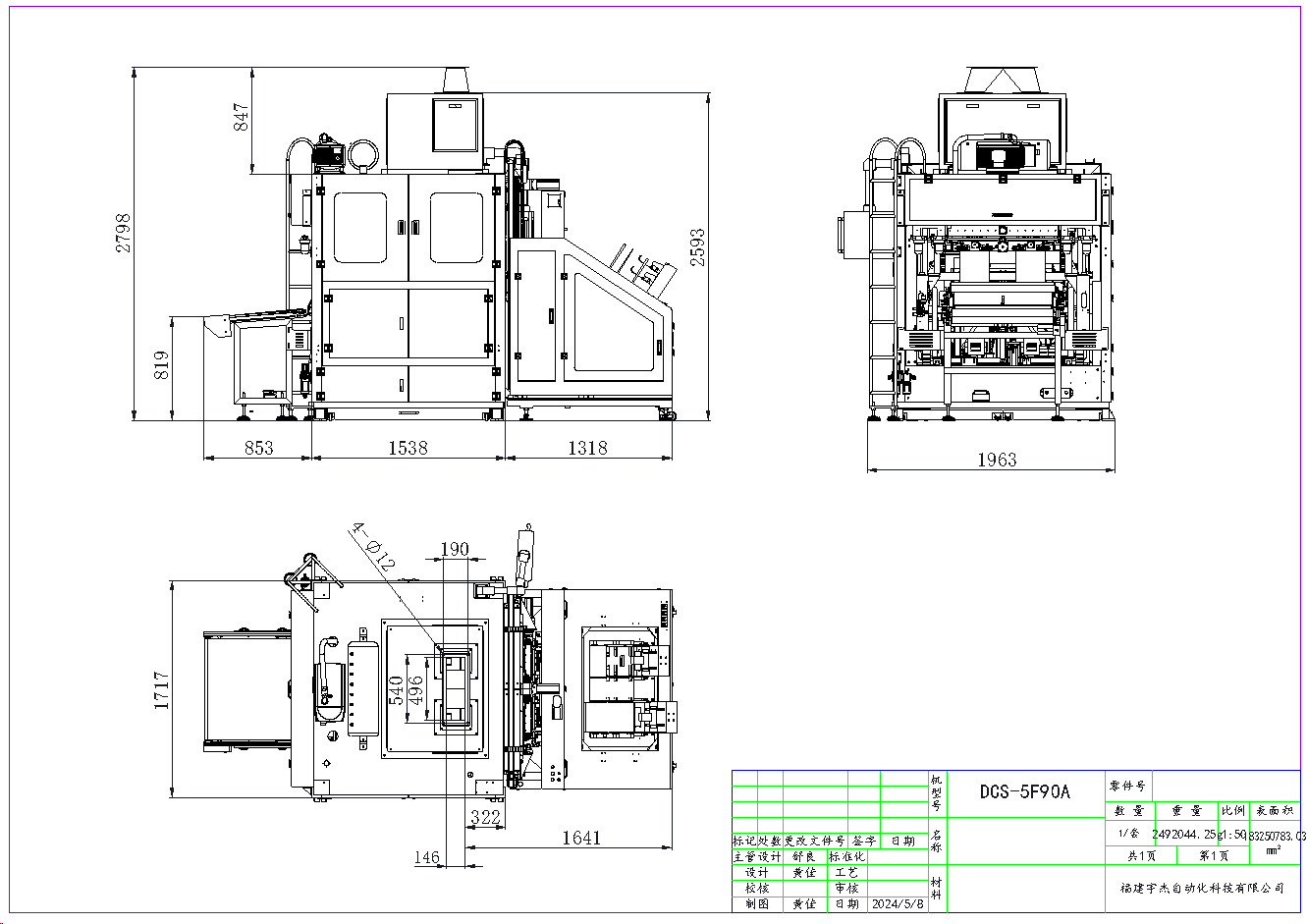

Dimensions	length 2440* width 2445* height 2908 (mm)
Vacuum degree (MPa)	-0.07-0 (adjustable)

Main components configuration

No.	Component Name	Brand/Manufacturer
1	Programmable Logic Controller (PLC)	Siemens (Germany)
2	Expansion Module	Siemens (Germany)
3	Touch Screen	Beijer (Sweden)
4	Servo Drive	Delta (Taiwan)
5	Electric Cylinder	Zolay (China)
6	Electric Linear Actuator	Huifeng (China)
7	Switching Power Supply	Mean Well (Taiwan)
8	Terminal Block	Phoenix Contact (Germany)
9	Circuit Breaker & Contactor	Schneider (France)
10	Push Button Switch	Schneider (France)
11	Proximity Sensor	Schneider (France)
12	Pneumatic Components	Airtac (Taiwan)
13	Weighing Control Module	German Tech (China)
14	Vacuum Pump	Becker (Germany)
15	Temperature Controller	Omron (Japan)
16	Electronic Vacuum Gauge	Kingdon (Taiwan)
