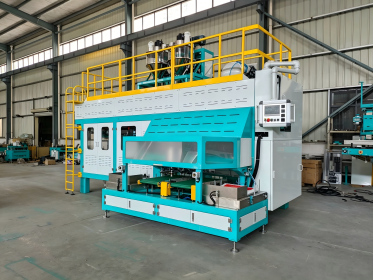

EnglishDCS-1500B | Fully-Automatic Powder Packing Machine (5-25kg)
Achieve high-speed, stable packaging with our fully automatic packing machines.
Packaging Finished Product Display
Features
01
Fully automatic
Automatic bag loading-metering-filling-Sealing(Sewing)-finished product packaging output, achieving unmanned packaging process
02
Wide application range
Compatible with both two-side heat-seal bags and woven bags. Wide application range, suitable for packaging various weights and bag types.
03
Parameter‑Click Switch
The device can save parameter groups, switch specifications with one click, and automatically adjust the device
04
Servo controlled movements
Efficient packaging with moving workstations, powered by servo motors for precise and stable operation
05
Screw Feeding with Bottom‑Impact Filling
Combines screw feeding and bottom‑impact filling to compact the material and reduce dust spillage – ideal for powders and dusty products.
Technical Specifications
DCS-5F90A | Fully Automatic Six Sided Shaping Vacuum Packaging Machine
Specification | Parameter |
| Packing range | 5~25kg（Rice for example） |
| Packing speed | 400-500 bags/hour (bottom-fill feeding) |
| Packaging error | 15~30g |
| Size range of bag | Width: 240-380mm Length: 470-770mm |
| Power consumption | AC380V 50Hz 10KW |
| Air source requirements | 0.8mpa 25m3/h |
| Dimensions | length 5960* width 2650* height 3710 (mm) |
Main components configuration
| No. | Component Name | Brand/Manufacturer |
|---|---|---|
| 1 | Programmable Logic Controller (PLC) | Siemens (Germany) |
| 2 | Expansion Module | Siemens (Germany) |
| 3 | Touch Screen | Beijer (Sweden) |
| 4 | Servo Drive | Delta (Taiwan) |
| 5 | Electric Cylinder | Zolay (China) |
| 6 | Electric Linear Actuator | Huifeng (China) |
| 7 | Switching Power Supply | Mean Well (Taiwan) |
| 8 | Terminal Block | Phoenix Contact (Germany) |
| 9 | Circuit Breaker & Contactor | Schneider (France) |
| 10 | Push Button Switch | Schneider (France) |
| 11 | Proximity Sensor | Schneider (France) |
| 12 | Pneumatic Components | Airtac (Taiwan) |
| 13 | Weighing Control Module | German Tech (China) |
| 14 | Vacuum Pump | Becker (Germany) |
| 15 | Temperature Controller | Omron (Japan) |
| 16 | Electronic Vacuum Gauge | Kingdon (Taiwan) |
