EnglishDCS-5F150A | Fully Automatic Brick-shaped Vacuum Packaging Machine
Achieve high-speed, stable, and aesthetically perfect Pouch-Bag packaging with our fully automatic packing machine.
Packaging Finished Product Display

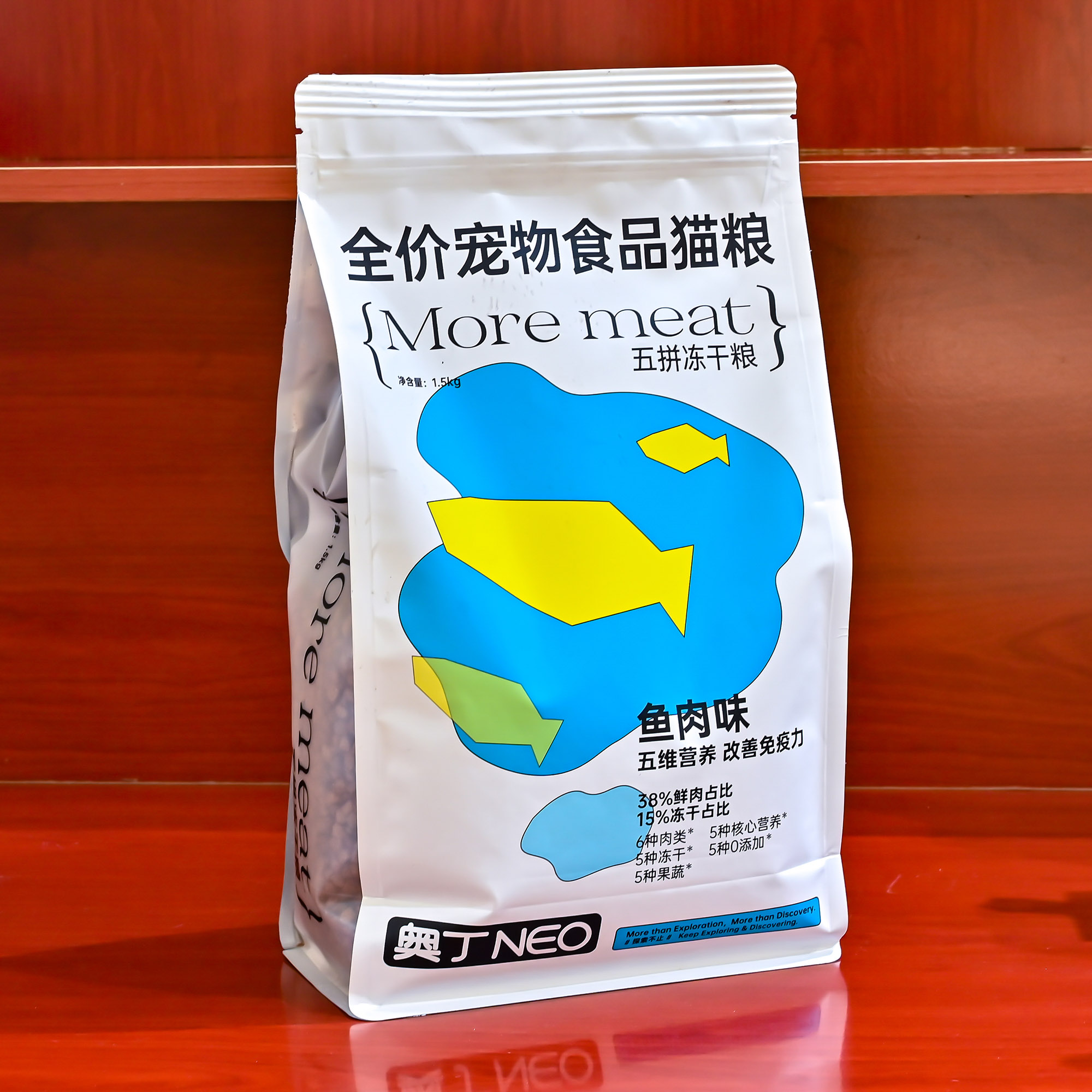

Stand-up pouch bag finished product

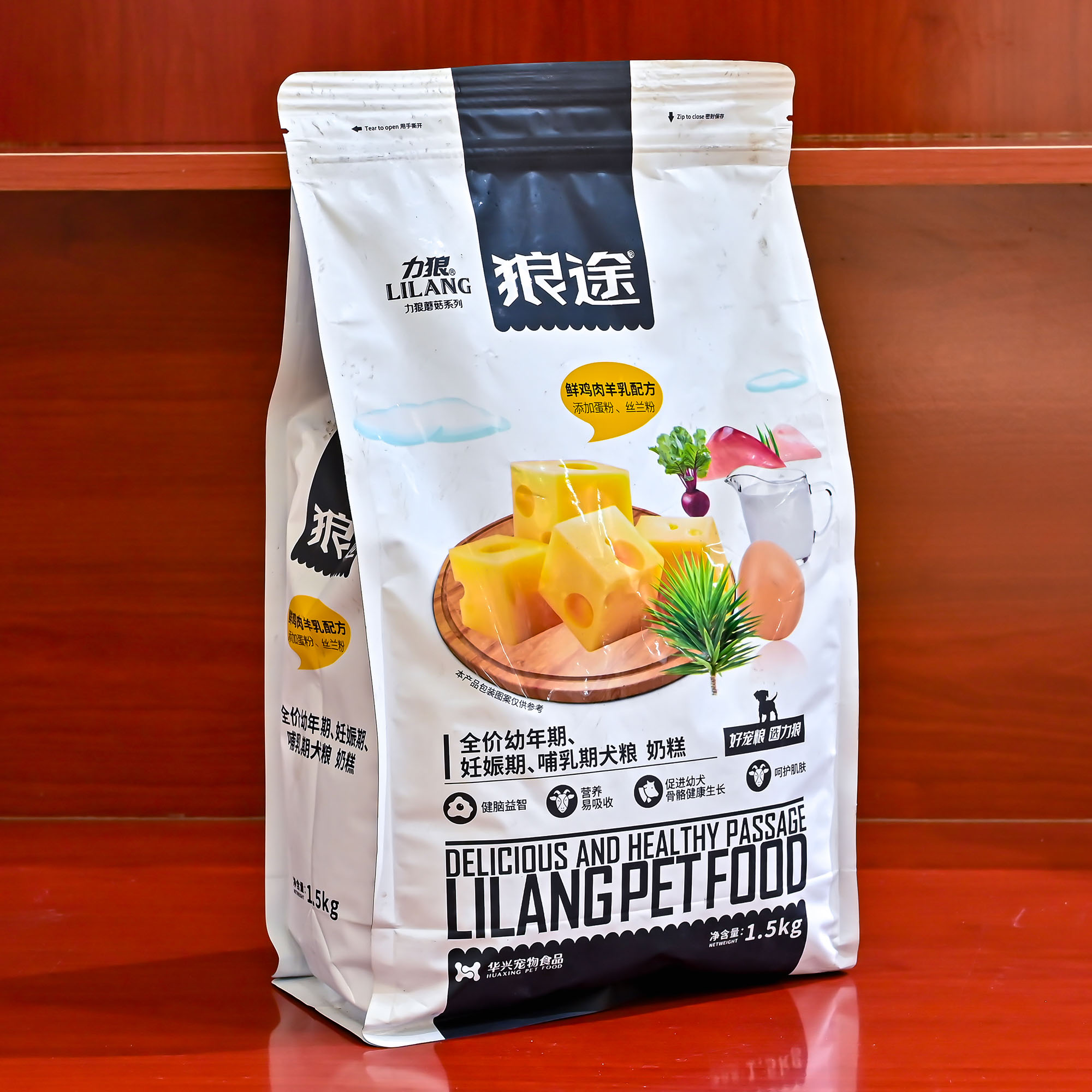

Stand-up pouch bag finished product
Features
01
Fully automatic
Automatic bagging, bagging, metering, filling, vacuum (shaping), finished product packaging output, realizing unmanned packaging process
02
Large packaging range
A shaping mechanism with a wide capacity of 300G~5KG, suitable for packaging in thick and thin shapes
03
Parameter‑Click Switch
The device can save parameter groups, switch specifications with one click, and automatically adjust the device
04
Dual‑Servo Two‑Stations
Efficient packaging with two workstations, powered by servo motors for precise and stable operation
05
Multi‑scale design:
Equipped with multiple weighing scales to meet the blending needs of pet food (including freeze‑dried ingredients) and cat litter.
Technical Specifications
DCS-5F150A | Fully Automatic Six Sided Shaping Vacuum Packaging Machine
Specification | Parameter |
| Packing range | 0.5~10kg |
| Bag size range | width: 160-330mm length 280-500mm |
| Packing speed | 1000-1200 packages/h |
| Packaging error | 2~5g |
| Power consumption | AC380V 50HZ 7kw |
| Air source requirements | 0.6mpa 20m3/h |

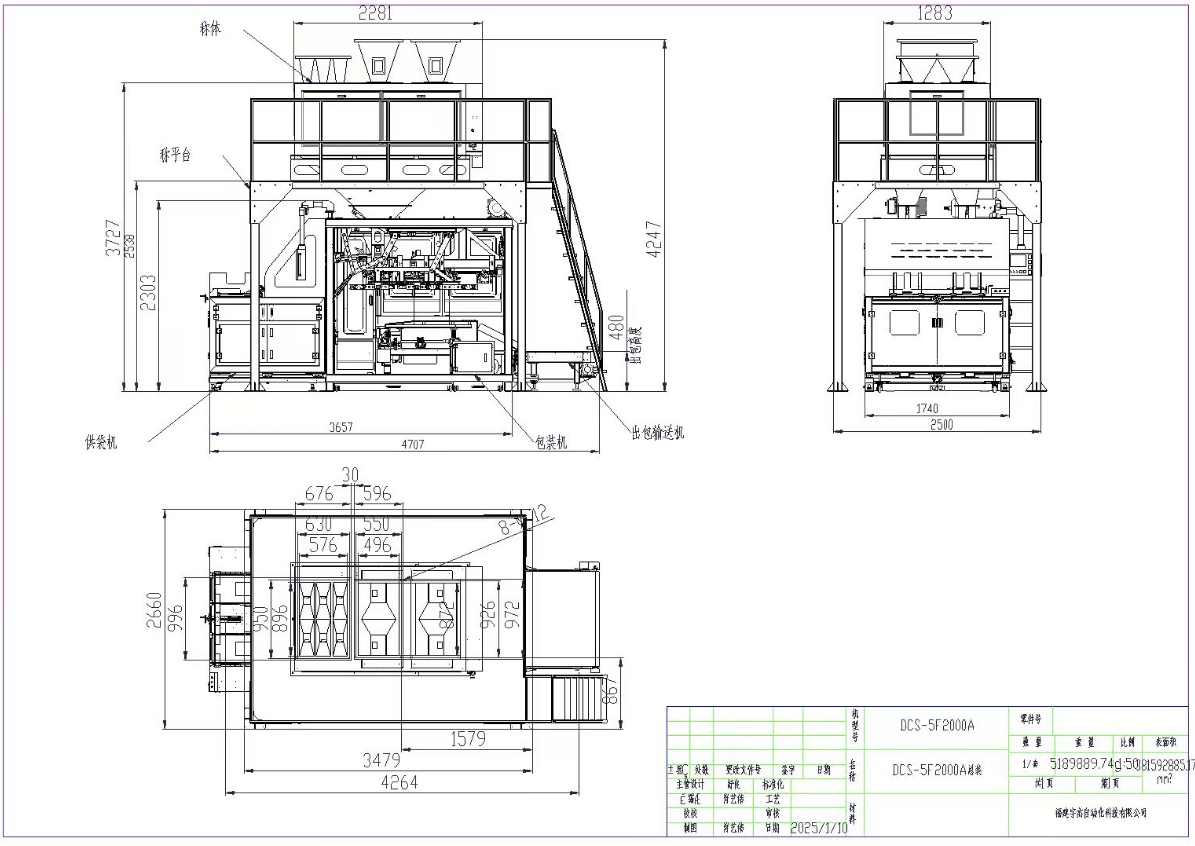

| Dimensions | length 6250* width 2955* height 4100 (mm) |
Product Main Component Configuration
| No. | Component Name | Main Configuration |
| 1 | Programmable Logic Controller (PLC) | Siemens (Germany) |
| 2 | Expansion Module | Siemens (Germany) |
| 3 | Touch Screen | Beijer (Sweden) |
| 4 | Terminal Block | Phoenix Contact (Germany) |
| 5 | Circuit Breaker | Schneider (France) |
| 6 | Contactor | Schneider (France), Siemens (Germany) |
| 7 | Push Button Switch | Schneider (France) |
| 8 | Servo Drive | Delta (Taiwan) |
| 9 | Switching Power Supply | Mean Well (Taiwan) |
| 10 | Electronic Vacuum Gauge | KITA(Taiwan) |
| 11 | Temperature Controller | Omron (Japan) |
| 12 | Proximity Sensor | Schneider (France) |
| 13 | Pneumatic Components | Airtac (Taiwan) |
| 14 | Vacuum Pump | Becker (Germany) |
| 15 | Weighing Module | General measure(China) |
