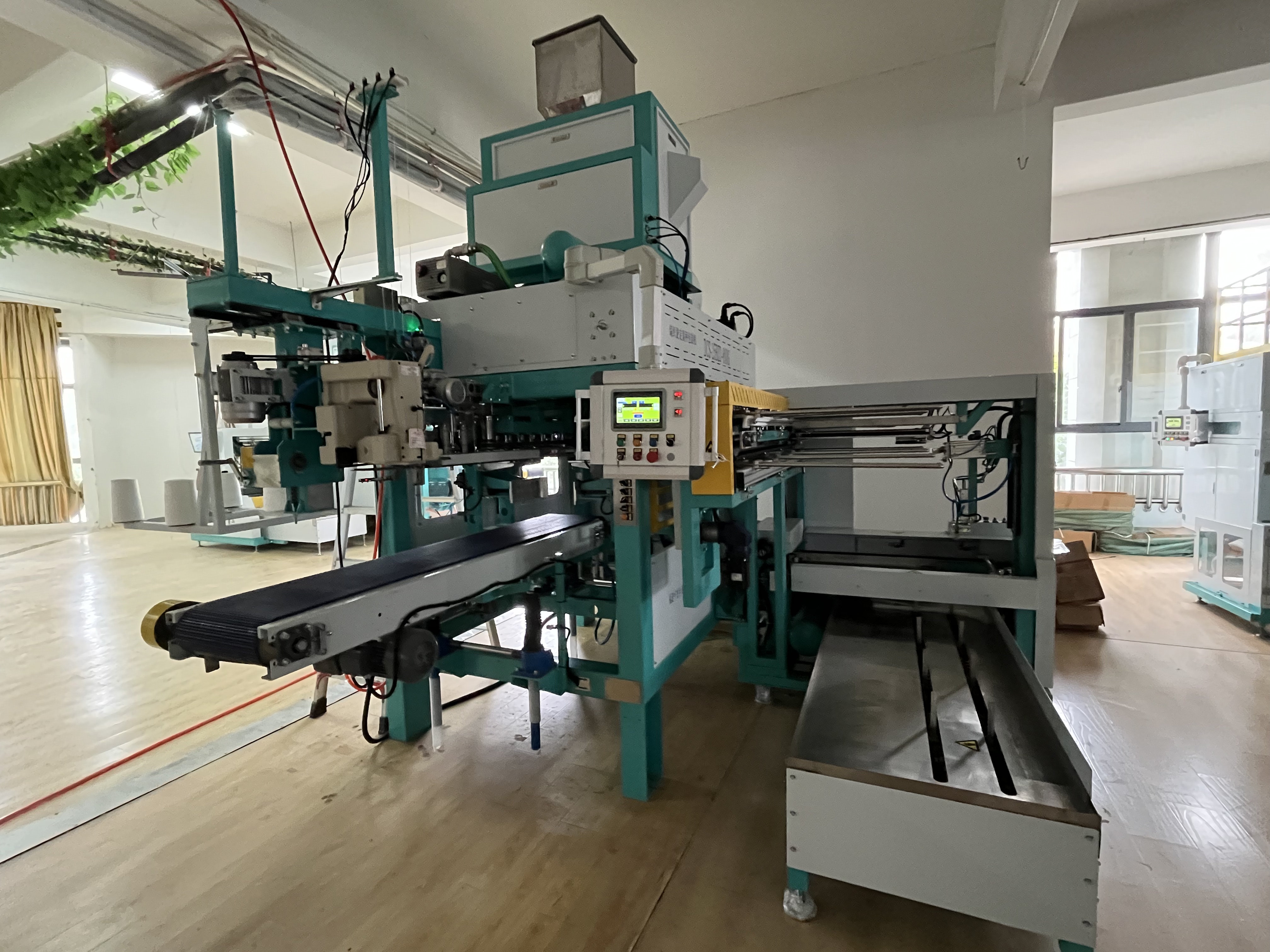

EnglishDCS-25BZD-800G | Fully Automatic bag packing machine DCS-25BZD-800G
Achieve high-speed, stable packaging with our fully automatic packing machines.
Packaging Finished Product Display
Nut six sided packaging
Six sided packaging of
melon seeds
Melon seed six sided packaging
Peanut six sided packaging
Rice brick-shaped vacuum packaging
Features
01
Fully automatic
Automatic bag loading-metering-filling-Sealing(Sewing)-finished product packaging output, achieving unmanned packaging process
02
Wide application range
Compatible with both two-side heat-seal bags and woven bags. Wide application range, suitable for packaging various weights and bag types.
03
Parameter‑Click Switch
The device can save parameter groups, switch specifications with one click, and automatically adjust the device
04
Servo controlled movements
Efficient packaging with moving workstations, powered by servo motors for precise and stable operation
05
Tri‑Stage Precision Scale
The scale body adopts a three-level feeding mode, with fast speed and high accuracy
Technical Specifications
DCS-5F90A | Fully Automatic Six Sided Shaping Vacuum Packaging Machine
Specification | Parameter |
| Packing range | 5~25kg（Rice for example） |
| Packing speed | 800 packages/h |
| Packaging error | 5~15g |
| Size range of bag | Width: 240-380mm Length: 470-770mm |
| Power consumption | 4N-AC380V 50HZ 3kw |
| Air source requirements | 0.8mpa 20m3/h |
| Dimensions | length 3599* width 3712* height 3363 (mm) |
| Vacuum degree (MPa) | -0.07-0 (adjustable) |
Main components configuration
| No. | Component Name | Brand/Manufacturer |
|---|---|---|
| 1 | Programmable Logic Controller (PLC) | Siemens (Germany) |
| 2 | Expansion Module | Siemens (Germany) |
| 3 | Touch Screen | Beijer (Sweden) |
| 4 | Servo Drive | Delta (Taiwan) |
| 5 | Electric Cylinder | Zolay (China) |
| 6 | Electric Linear Actuator | Huifeng (China) |
| 7 | Switching Power Supply | Mean Well (Taiwan) |
| 8 | Terminal Block | Phoenix Contact (Germany) |
| 9 | Circuit Breaker & Contactor | Schneider (France) |
| 10 | Push Button Switch | Schneider (France) |
| 11 | Proximity Sensor | Schneider (France) |
| 12 | Pneumatic Components | Airtac (Taiwan) |
| 13 | Weighing Control Module | German Tech (China) |
| 14 | Vacuum Pump | Becker (Germany) |
| 15 | Temperature Controller | Omron (Japan) |
| 16 | Electronic Vacuum Gauge | Kingdon (Taiwan) |
Related Application Scenarios
Rich product system that can be applied to various industry scenarios
-
The rice packagingThe rice packaging industry is rapidly transitioning from manual operations to automation and intelligence. Facing multiple needs including moisture prevention, freshness preservation, efficiency improvement, and cost control, intelligent packaging systems have become key to industry upgrading. -
The coarse grain packagingThe coarse grain packaging sector faces challenges including small batch sizes, multiple varieties, and high-frequency production. Yujie's smart packaging system provides tailored solutions with precise weighing, rapid changeover, and high-efficiency packaging. This helps producers maintain freshness while meeting market demand for diverse and convenient packaging formats.
